Neo

Technical Information
Indoor Unit

Model PRFN09 PRFN12 PRFN18 PRFN24
Capacity (Cooling) 2.70 kW 3.55 kW 5.275 kW 7.10 kW
Capacity (Cooling) 9,200 btu/h 12,100 btu/h 18,000 btu/h 24,200 btu/h
Air Flow Volume (SH/H/M/L) 700 / 630 / 560 / 490 / 420 / 390 / 360 m3/h 720 / 630 / 560 / 490 / 450 / 420 / 390 m3/h 1100 / 950 / 870 / 820 / 770 / 610 / 570 m3/h 1450 / 1100 / 1050 / 950 / 900 / 850 / 800 m3/h
Sound Pressure Level (SH/H/M/L) 42 / 38 / 36 / 33 / 28 / 24 / 22 / 16 dB(A) 45 / 39 / 37 / 35 / 33 / 31 / 25 / 18 dB(A) 47 / 44 / 41 / 38 / 35 / 32 / 29 dB(A) 51 / 45 / 43 / 40 / 36 / 34 / 32 dB(A)
Dimension Outline
(WxHxD) 		825 x 293 x 196 mm 825 x 293 x 196 mm 982 x 311 x 221 mm 1075 x 333 x 246 mm
Net Weight / Gross Weight 9.5kg / 11.5kg 9.5kg / 11.5kg 12.5kg / 15kg 15.5kg / 18.5kg

Technical Information
Outdoor Unit

Model PRCN28 PRCN36
Capacity (Cooling) 6.2 (2.1-8.3)kW 7.2 (2.2-10.55)kW
Capacity (Cooling) 21000 (7200-28300) btu/h 24600(7500-36000) btu/h
Running Current PRCZ28 - 5.93A PRCZ36 - 6.86A
Power Input (Cooling) 1.270 kW 1.480 kW
Refrigerant Charge Volume 1.6kg 1.7kg
Air Flow Volume 3800 m3/h 3800 m3/h
Sound Pressure Level 54 dB(A) 54 dB(A)
Dimension Outline (WxHxD) 964 x 660 x 402 mm 964 x 660 x 402 mm
Net Weight / Gross Weight 46.5kg / 51.0kg 48.0kg / 52.5kg

Warranty

Standard Warranty 2 years on Fan Coil Unit, 6 years on Compressor Only
(Labour and Transport Included)

Connectivity & Compatibility

Standard Support Full compatibility with WiFi 5 and WiFi 6 (2.4G)

Common Additional Charges

Below, you'll find a list of typical supplementary fees displayed in the table. Any additional charges not visible in the table that may be necessary will be communicated and validated by our air conditioning experts during the on-site assessment. Invoice will be sent by the ops team after site survey.

Installation Type Price Unit Installation Details
Non HDB installation $150 Per Aircon Unit
Priority Installation Charges (Install within 7 - 14 days) $250 Flat Fee Per Purchase
Aircon Pressure Test $120 Per Set of Piping Pressure test on existing refrigerant pipes to check for gas leakage. Gas top-up not included.
Ceiling/Partition Work $80 Per Hole Cut, patch, and touch up paint for each ceiling hole. Use Nippon Matex White 9102 paint only.
Extra Trip - Installation $180 Per Day Extra trip required for installation.
Insulation Upgrade - 3/4" Armaflex Class "0" Insulation $100 Per Aircon Unit Upgrade insulation thickness to 3/4".
Long Pipe Run From $150 Per Route For piping routes that exceed 15m in length.
Modification of Cornice (with Patching) $150 Per Cornice Cut, patch, and touch up paint for each modified cornice. Use Nippon Matex White 9102 paint only.
Outdoor Unit Bracket From $180 Per Bracket Installation of outdoor unit brackets; removal of existing brackets will be complimentary.
Pelmet - Creation $300 For 1 Pelmet Hole Cut, patch, and touch up paint for each pelmet hole. Use Nippon Matex White 9102 paint only.
$250 Per Pelmet (More Than 1 Hole)
Replacement of Aluminium Sheet and Plywood Panel (Window Opening Bracket) $100 Per Window Opening Installation of aluminium sheet and plywood panel to cover window openings; removal of existing panels will be complimentary.
Working at Height $250 Per Indoor/Outdoor Unit For placement of indoor or outdoor units 3.5m above ground.

$0

$0 x4 w/ grab pay
grabpay No Hidden Fees
grabpay Earn Rewards
grabpay Flexible Payment

What you pay today

$0

if you choose to pay next month with PayLater postpaid

or

$0

if you choose to pay in 4 interest-free installments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Grab as your payment method.
 | $0 x3 w/ grab pay
grabpay

Pay for your purchase in 3 interest-free instalments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Atome as your payment method.
 | $0 x3 w/ grab pay

Add To Cart Get It Now Sold out

grabpay No Hidden Fees
grabpay Earn Rewards
grabpay Flexible Payment

What you pay today

$0

if you choose to pay next month with PayLater postpaid

or

$0

if you choose to pay in 4 interest-free installments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Grab as your payment method.
grabpay

Pay for your purchase in 3 interest-free instalments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Atome as your payment method.
pacepay

Pay for your purchase in 3 interest-free instalments.

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Pace as your payment method.
bnpl-codes bnpl-codes
bnpl-codes bnpl-codes
bnpl-codes bnpl-codes
oasis-sizes
oasis-sizes

Ceiling Fan Size & Clearance

oasis-sizes oasis-sizes

*A minimum clearance from the tip of the blades to the nearest ceiling fixture is critical to allow unrestricted airflow and to prevent unwanted noise or fan wobbling.

oasis-sizes oasis-sizes
btu-combination btu-combination

Customer Reviews

Based on 1620 reviews
92%
(1483)
6%
(104)
1%
(21)
0%
(3)
1%
(9)
A
Anonymous
Fast colling of room

Fast cooling of the room as compared to other aircon brand

Anonymous review photo
i
inelmi19

Performance:The aircon is quiet and cooling
Value for Money:good value
Features:good

Received the product in good condition and thank you for all the PRISM+ Team who helped in the process of expediting the installation and installation Team installed the aircon in an efficient manner and minimise the dusk. Appreciate it.
—Review from Shopee

inelmi19 review photo
j
jasonlimhs

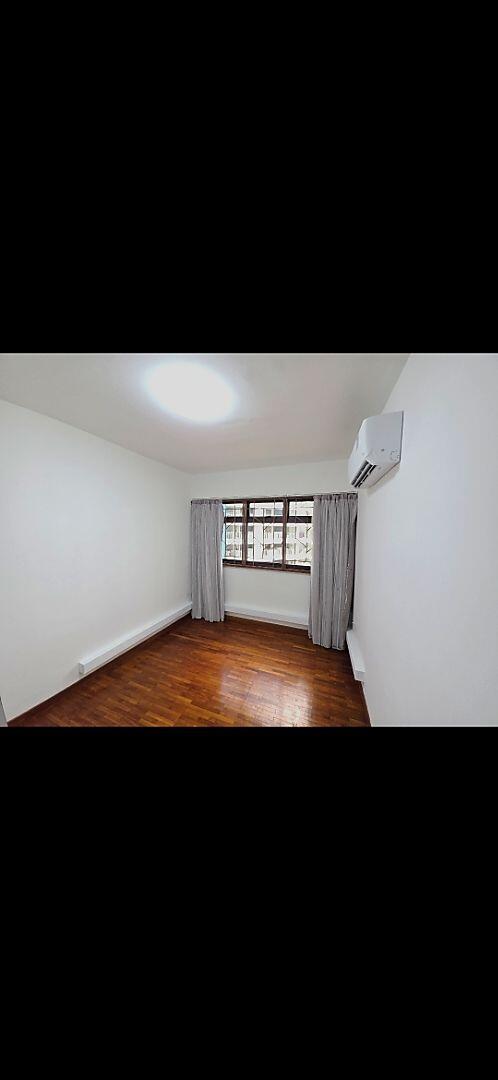

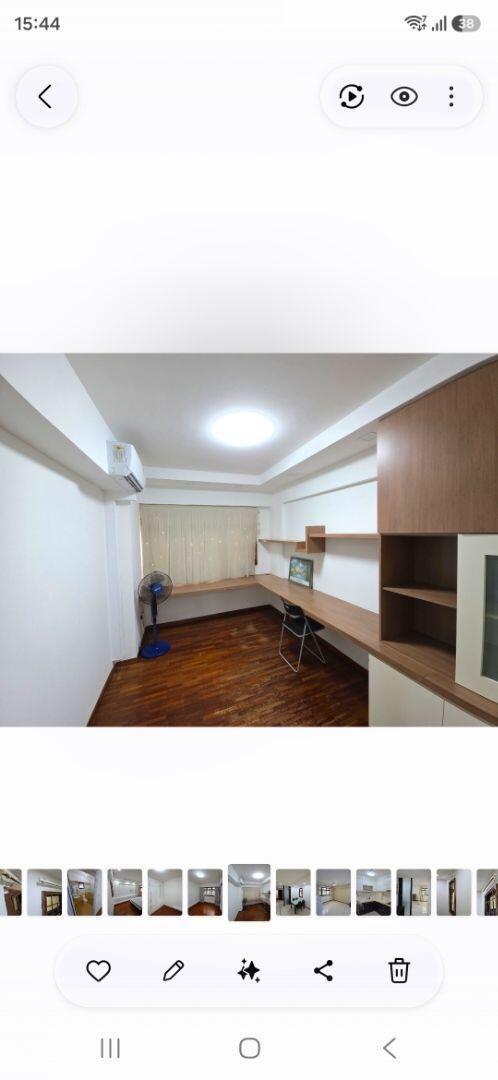

Performance:work perfectly. cool down the room very fast
